SKX Pro
One Instrument. Many Possibilities

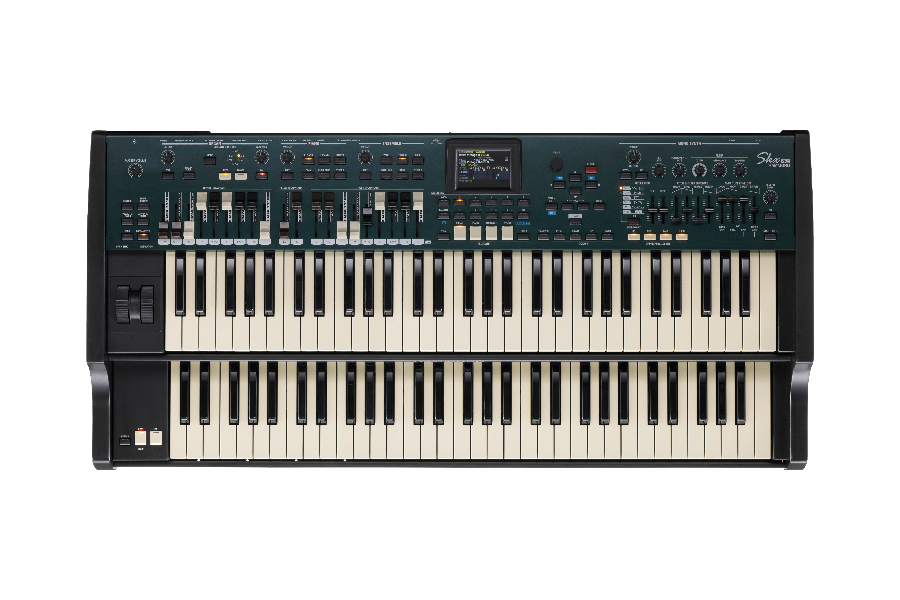

Introducing SKX Pro. The most versatile two-manual portable organ ever produced by Hammond Suzuki.
SKX Pro retains the classic Hammond tonewheel sound whilst adding a huge variety of keyboard and synth voices to make this the goto instrument for stage & studio use. This instrument offers amazing flexibility with the assignment of sounds to both manuals. It's even possible to split each keyboard into different zones for the most demanding sound applications. The classic analogue-modelled mono synth is on hand to create soaring leads and fat bass voices.
The SKX Pro features eight different organ types to suit many styles of traditional and contemporary organ music: A-100, B-3, C-3, Mellow, Vx, Farf, Ace, and Pipe. Our exclusive Virtual Multi-Contact keyboard simulates adds to an authentic vintage Hammond playing experience. The onboard Leslie Simulator offers a wide range of preset tone cabinets and amplifier simulations to get that classic Hammond sound. Virtual Tonewheel modelling allows detailed editing and construction of your own organ voices.
Hammond SKX Pro
Hammond SKX Pro
Hammond SKX Pro
Hammond SKX Pro
SKX Pro Image Gallery
Hands On Control.
The SKX Pro is a genuinely hands-on instrument. The panel is full of physical controllers, close at hand and dedicated to manipulating the parameters you need when playing live. Easily control reverb, EQ, organ overdrive, pitch bend, modulation, Leslie speed, vibrato, chorus and many other valuable functions.
SKX Pro Videos
Hammond SKX Pro Product Overview
SKX Pro Piano Voices Demo
SKX Pro Live Blues Gig
SKX Pro Optional Wooden End Panels
SKX Pro Organ by Dirk Van de Linden
SKX Pro 'Misty'
SKX Pro Specifications
SOUND ENGINE
[Organ Section] : MTW1 (Modelled Tone Wheel I), Polyphony: 61 (Tone Wheel Organ)
[Piano/Ensemble Section] : Sampling Sound Engine, Polyphony: 128
[Mono Synth Section] : Analog Modeling Synthesizer, Monophonic
KEYBOARDS
Double manual 2 x 61-key with velocity, semi-weighted, Square-front ("Waterfall"-style)
ORGAN SECTION
[Parts] : 3 (Upper, Lower, Pedal)
[Drawbars] : Upper9, Lower9, Pedal2
[Voicing] : Upper & Lower: 8 (A-100, B-3, C-3, Mellow, Vx, Farf, Ace, Pipe) Pedal: 3 (Normal, Muted, Pipe)
[Percussion] : Buttons: On, Volume Soft, Decay Fast, Third Harmonic
PIANO/ENSEMBLE SECTION
Component: 4, LFO: 2
MONO SYNTH SECTION
[Oscillator] : 6 types (Duo, Unison, Pulse, Sync, FM, Noise)
[Filter] : 4 types (LP12, LP24, HP12, HP24), Resonance, Drive
[Modulator] : LFO: 1, EG: 2 (Pitch&Filter, Amplitude
EFFECTS
[Organ Section] : Vibrato & Chorus, Multi Effect 1, Overdrive, Multi Effect 2, Matching Transformer, Leslie, Equalizer & Tone Control
[Piano/Ensemble Section] : For each section: Multi Effect 1, Overdrive, Multi Effect 2, Equalizer
[Mono Synth Section] : Multi Effect 1, Overdrive, Multi Effect 2, Equalizer
[Master] : Equalizer, Reverb
KEY MAP
[Internal zone] : Transpose, Octave, Split, Pedal To Lower, Lower To Pedal, Allocate, Pedal Sustain
[External Zones] : 3 Zones (assignable to each keyboard)
CONTROLLERS
Pitch Bend wheel, Modulation wheel, Portamento, Leslie (Bypass, Stop, Fast)
MEMORY
[Favorites] : 10 banks x 10 numbers (Combination), 10 numbers (Page)
[Combination] : Factory: 100, User: 100, Bundle: 100, Manual
[Organ Patch] : Factory: 100, User: 100, Bundle: 100
[Piano/Ensemble Path] : Factory: 300, User: 400
[Mono Synth Patch] : Factory: 100, User: 100, Bundle: 100
[Custom Tone Wheel] : Factory: 4 x 3, User: 4 x 3
[Custom Pedal Registration] : Factory: 3, User: 3
[Custom Pipe] : Factory: 3, User: 3
[Custom Cabinet] : Factory: 8, User: 8
STORAGE
Internal Memory, USB Flash Drive
DISPLAY
320 x 240 pixel
CONNECTIONS
[MIDI] : IN, OUT
[USB] : To Host
[Audio] : Line Out L, R, Headphones, Individual 1, 2, Rotary Out, Organ Pedal Out, Aux In (with Volume control)
[Leslie] : 11-pin, 1 and 3 channels available
[Others] : Foot Switch 1, Leslie Switch, Foot Switch 2, Damper Pedal, Expression Pedal
RATED POWER CONSUMPTION
22W
DIMENSIONS
1002mm(W) x 474mm(D) x 183mm(H)
WEIGHT
18,0 kg
ACCESSORY
AC Cord
